NVIDIA Network Operator Deployment on Disconnected OpenShift

On this page

Prerequisites
- Network Layout and Server Roles
Mirroring images from public registries
Upload the container images to the private registry
- Move the TAR file to the disconnected environment
- Mirroring the operator from disk to private registry
Configure the Openshift catalog
Installing Operators in the disconnected environment
Create the instances

Deploying OpenShift operators in an environment with internet access is typically straightforward. However, in industries like cyber security, military sector or Telco/communications, where security concerns often prohibit internet access, the process becomes more complex. In a disconnected or air-gapped environment, internet access is usually restricted or unavailable.

Prerequisites

The following requirements must be met:

OpenShift is installed in a disconnected environment
A private registry is deployed in the disconnected environment

Network Layout and Server Roles

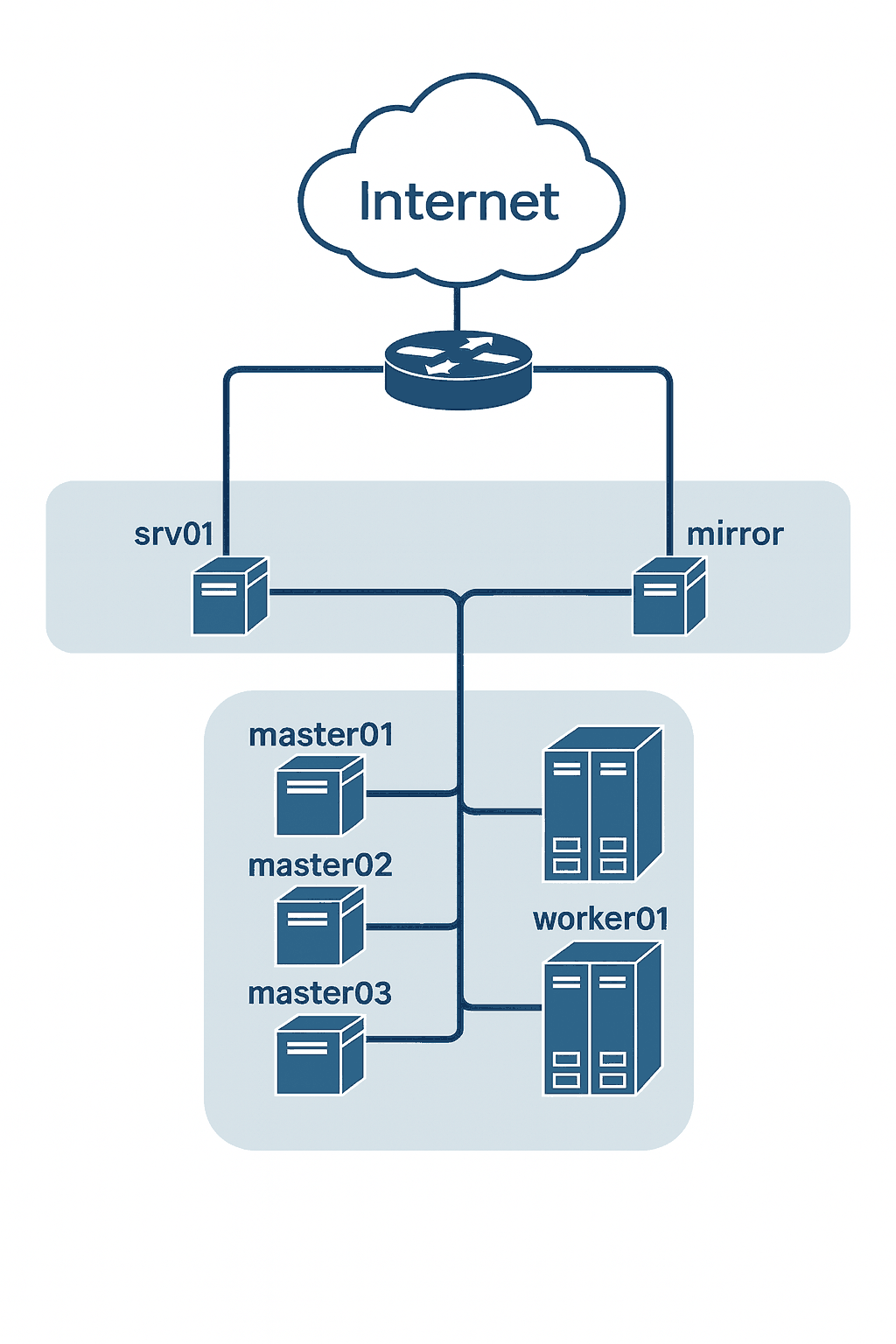

The following network layout is used in this guide:

Server Name	Services running on	Access to Internet
srv01	NTP, DHCP, DNS, HTTP	Yes
mirror	Mirroring tools, Local Registry	Yes
master01, master02, master03	Control Plane servers in a cluster	No
worker01, worker02	Workers in a cluster	No

Mirroring images from public registries

This section requires an internet connection, for fetching images from public registries. In our scenario we are using the mirror server for this operation.

Install OpenShift CLI

Follow the instructions in the OpenShift documentation to install the OpenShift CLI (oc).

Install oc-mirror plugin

To download the oc-mirror CLI plugin, navigate to the downloads page of the OpenShift Cluster Manager. Under the “OpenShift disconnected installation tools” section, click “Download” for “OpenShift Client (oc) mirror plugin” and save the file.

Extract the archive:

tar -xvf oc-mirror.tar.gz
chmod +x oc-mirror

Note

Do not rename the oc-mirror file

To install the oc-mirror CLI plugin, place the file in your PATH. For example:

sudo mv oc-mirror /usr/local/bin/

Verify that the plugin for oc-mirror is installed:

oc mirror help

Note

There is no dash (-) between oc and mirror.

If the command returns help options, then the oc-mirror CLI plugin is installed.

Configure the oc-mirror credentials

Download your registry.redhat.io pull secret from Red Hat OpenShift Cluster Manager.

Convert the pull secret to JSON format:

cat ./pull-secret | jq . > config.json

Copy the JSON file to the .docker directory:

mkdir ~/.docker
cp config.json ~/.docker/config.json

Log in to registry.redhat.io:

podman login registry.redhat.io

Create the oc-mirror ISC (ImageSourceConfiguration)

The oc-mirror tool uses an ISC configuration file to define what needs to be mirrored. This configuration allows you to specify the catalog source name and the versions of the operators you want to mirror.

Find operator channel and release information for the required OpenShift version (example: 4.19):

oc mirror list operators --catalogs --version=4.19

Available OpenShift OperatorHub catalogs:
OpenShift 4.19:
registry.redhat.io/redhat/redhat-operator-index:v4.19
registry.redhat.io/redhat/certified-operator-index:v4.19
registry.redhat.io/redhat/community-operator-index:v4.19
registry.redhat.io/redhat/redhat-marketplace-index:v4.19

In order to mirror NFD and NVIDIA Network-Operator, we will use the following catalogs:

redhat-operator-index
certified-operator-index

Find the channel for NFD operator:

oc mirror list operators --catalog=registry.redhat.io/redhat/redhat-operator-index:v4.19 --package=nfd

NAME  DISPLAY NAME  DEFAULT CHANNEL
nfd                 stable

PACKAGE  CHANNEL  HEAD
nfd      stable   nfd.4.19.0-202508120121

Find the channel for NVIDIA Network Operator:

oc mirror list operators --catalog=registry.redhat.io/redhat/certified-operator-index:v4.19 --package=nvidia-network-operator

NAME                     DISPLAY NAME  DEFAULT CHANNEL
nvidia-network-operator                v25.7

PACKAGE                  CHANNEL  HEAD
nvidia-network-operator  stable   nvidia-network-operator.v25.7.0
nvidia-network-operator  v25.7    nvidia-network-operator.v25.7.0

Use the oc mirror command to create a template for the ISC configuration file.

oc mirror init > imagesset-config.yaml

Edit the new ISC file and update it using the right catalog and the operators release information you gathered in the previous steps. Here’s an example of an ISC configuration file for our scenario:

kind: ImageSetConfiguration
apiVersion: mirror.openshift.io/v1alpha2
storageConfig:
  local:
    path: /path/to/disk-mirror-dir/metadata
mirror:
  platform:
    channels:
    - name: stable-4.19
      minVersion: 4.19.0
      maxVersion: 4.19.0
      type: ocp
  operators:
  - catalog: registry.redhat.io/redhat/redhat-operator-index:v4.19
    packages:
    - name: nfd
      channels:
      - name: stable
  - catalog: registry.redhat.io/redhat/certified-operator-index:v4.19
    packages:
    - name: nvidia-network-operator
      channels:
      - name: stable
  additionalImages:
  - name: registry.redhat.io/ubi8/ubi:latest
  helm: {}

Note

Please keep in mind that you can decide what will be the max and min version of any channel in any catalog according to your requirements. In our case, to save space on storage, we minimized it to one version only.

Create the operators’ images TAR file

Create a directory for the image’s TAR file, and then run the command:

mkdir data
oc mirror --verbose 3 --config=imagesset-config.yaml file://data

Once the operation is completed, the TAR file will appear in created directory:

ls -ltrh data/

total 35G
drwxr-xr-x. 3 root root  17 Jan 27 07:36 oc-mirror-workspace
-rw-r--r--. 1 root root 35G Jan 27 07:40 mirror_seq1_000000.tar

Upload the container images to the private registry

Move the TAR file to the disconnected environment

The operational procedures and security requirements can vary significantly from one organization to another. For example, in certain highly restricted environments, you must copy the TAR file to a portable disk, which you take to your disconnected environment’s security team for review.

Mirroring the operator from disk to private registry

Once the data has been moved to the disconnected environment, you can begin pushing the images in your private registry. Because you’ve used the oc-mirror plugin to push all necessary container images, you must configure the tools accordingly, with the credential information pointing to your private registry instead of the Red Hat public registry.

This is an example of config.json file for local registry:

cat /mirror-data/config.json
{
  "auths": {
    "mirror.air-gapped.local:5000": {
    "auth": "aW5pdDpxYXdzMTI="
    }
  }
}

Create a directory to copy the TAR file, and to serve as the destination for oc mirror output:

mkdir data

Copy the TAR file to the destination directory:

mkdir data
cp mirror_seq1_000000.tar data/
cd data

Execute the oc mirror command to upload the container’s images to your private registry:

oc mirror --verbose 3 \
--from=./mirror_seq1_000000.tar \
docker://mirror.air-gapped.local:5000/ocp/openshift4

Once complete, you get the following directories with similar files:

ls -ltr data/oc-mirror-workspace/results-1737982710/
total 64
drwxr-xr-x. 2 root root       6 Jan 27 07:58 charts
drwxr-xr-x. 2 root root       52 Jan 27 08:03 release-signatures
-rw-r--r--. 1 root root 49619 Jan 27 08:03 mapping.txt
-rwxr-xr-x. 1 root root   253 Jan 27 08:03 catalogSource-cs-redhat-operator-index.yaml
-rwxr-xr-x. 1 root root   259 Jan 27 08:03 catalogSource-cs-certified-operator-index.yaml
-rwxr-xr-x. 1 root root  1565 Jan 27 08:03 imageContentSourcePolicy.yaml

Configure the Openshift catalog

You must be logged in to your OpenShift instance as a user with cluster-admin privileges. In our setup we are using kubeconfig file created with OCP deployment in isolated network:

export KUBECONFIG=/mirror-data/iso_build/brm_static/auth/kubeconfig

Keeping the Openshift default catalogs in a disconnected environment would just trigger unnecessary errors, so disable the default OperatorHub catalog sources:

$ oc patch OperatorHub cluster --type json -p '[{"op": "add", "path": "/spec/disableAllDefaultSources", "value": true}]'

Apply the ICSP yaml file:

oc apply -f /mirror-data/data/oc-mirror-workspace/results-1737982710/imageContentSourcePolicy.yaml

Next, create the Red Hat catalog, you could run it for each catalog workspace that you have. In our scenario it’s: certified-operator-index and redhat-operator-index:

oc apply -f  data/oc-mirror-workspace/results-1737982710/catalogSource-cs-redhat-operator-index.yaml
oc apply -f data/oc-mirror-workspace/results-1737982710/catalogSource-cs-certified-operator-index.yaml

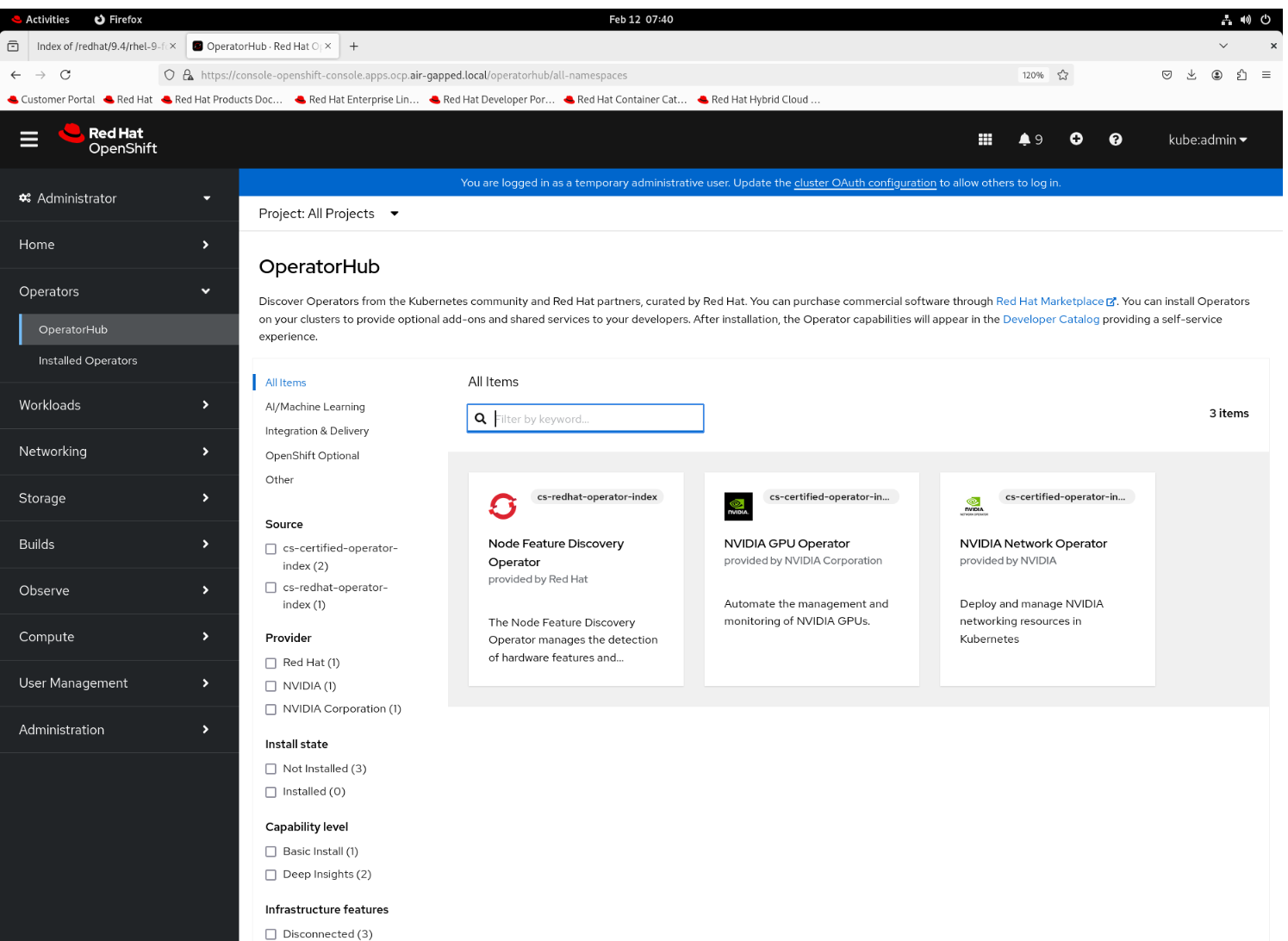

Verify that you can see the catalog in the mirrored operators in UI “Operators > OperatorHub”:

Installing Operators in the disconnected environment

The easiest way to install the operators in OpenShift it’s using the OpenShift UI. Once you have the OpenShift cluster UI open, follow these steps:

Click on Operators > OperatorHub
Select the operator to install
Keep the default settings and click Install

Create the instances

After successful installation of all operators you must create the instances or polices depending on your use case.

Create the NFD instance

In the web console, click “Operators > Installed Operators”, and then “Node Feature Discovery Operator” In Details > Provided API’s look for (NFD) NodeFeatureDiscovery “Create instance”

Once the instance creation will completed you can find it in “Operators > Installed Operators > Node Feature Discovery Operator > All instances”

NVIDIA DOCA OFED driver container in disconnected environment

In case you want to use the NVIDIA DOCA OFED driver container in the disconnected environment, the following steps are required:

Create Local Package Repositories

Create the Local Package Repository required:

redhat.repo
ubi.repo
cuda.repo

The detailed instructions and examples about how to create local repositories is available in this article . Instructions on how to create a repo file can be found here.

redhat.repo:

[baseos]
name=rhel-9-for-x86_64-baseos-rpms
baseurl=http://srv01.air-gapped.local/redhat/9.4/el-9-for-x86_64-baseos-rpms
gpgcheck=0
enabled=1

[apstream]
name=rhel-9-for-x86_64-appstream-rpms
baseurl=http://srv01.air-gapped.local/redhat/rhel-9-for-x86_64-appstream-rpms
gpgcheck=0
enabled=1

ubi.repo:

[ubi-9-baseos]
name = Red Hat Universal Base Image 9 (RPMs) - BaseOS
baseurl = http://srv01.air-gapped.local/redhat/ubi-9-baseos-rpms
enabled = 1
gpgcheck = 0
[ubi-9-appstream]
name = Red Hat Universal Base Image 9 (RPMs) - AppStream
baseurl = http://srv01.air-gapped.local/redhat/ubi-9-appstream-rpms
enabled = 1
gpgcheck = 0

cuda.repo:

[cuda]
name=cuda
baseurl=http://srv01.air-gapped.local/nvidia/cuda
priority=0
gpgcheck=0
enabled=1

Create the ConfigMap for the repos files:

oc create configmap repo-config -n nvidia-network-operator  --from-file=redhat.repo --from-file=ubi.repo --from-file=cuda.repo

If self-signed certificates are used for an HTTPS based local repository, a ConfigMap must be created for those certificates:

oc create configmap cert-config -n nvidia-network-operator --from-file=<path-to-pem-file>

Create a precompiled container for the DOCA OFED driver

We will use the mirror server to build the precompiled container for the DOCA OFED driver.

Please verify that you have the following:

Podman (RH) installed on your build system
Web access to NVIDIA NIC drivers sources

Follow the instructions in Precompiled Container Build Instructions for NVIDIA DOCA-OFED Driver Container section to build the precompiled container.

Note

You need to make the created image accessible in your environment (on the local registry server). Working with container images is described in this page.

In order to get the sha256 of the image, you can use the following command:

skopeo inspect docker://mirror.air-gapped.local:5000/mellanox/doca-driver:your-tag | jq -r '.Digest'

Create the NIC Cluster Policy instance

In the web console, click “Operators > Installed Operators”, and then “NVIDIA Network Operator > NicClusterPolicy > Create NicClusterPolicy”

You need to provide required parameters depending on your setup. After editing and overriding our nic-cluster-policy yaml looks like this:

apiVersion: mellanox.com/v1alpha1
kind: NicClusterPolicy
metadata:
      name: nic-cluster-policy
spec:
      ofedDriver:
      certConfig:
      name: cert-config
      env:
      - name: RESTORE_DRIVER_ON_POD_TERMINATION
      value: "true"
      - name: UNLOAD_STORAGE_MODULES
      value: "true"
      - name: CREATE_IFNAMES_UDEV
      value: "true"
      forcePrecompiled: true
      image: doca-driver
      imagePullSecrets:
      - mirror-registry-ps
      livenessProbe:
      initialDelaySeconds: 30
      periodSeconds: 30
      readinessProbe:
      initialDelaySeconds: 10
      periodSeconds: 30
      repoConfig:
      name: repo-config
      repository: mirror.air-gapped.local:5000/mellanox
      startupProbe:
      initialDelaySeconds: 10
      periodSeconds: 20
      terminationGracePeriodSeconds: 300
      upgradePolicy:
      autoUpgrade: true
      drain:
      deleteEmptyDir: true
      enable: true
      force: true
      podSelector: ""
      timeoutSeconds: 300
      maxParallelUpgrades: 1
      safeLoad: false
      waitForCompletion:
      timeoutSeconds: 0
      version: sha256:9a831bfdf85f313b1f5749b7c9b2673bb8fff18b4ff768c9242dabaa4468e449

Note: Please be sure to provide configured ConfigMaps: repo-config and cert-config.

If your local repository requires username and password for access you need to create imagePullSecrets and provide this parameter in nic-cluster-policy.yaml:

imagePullSecrets:
- mirror-registry-ps

How to create imagePullSecrets:

oc -n nvidia-network-operator create secret docker-registry \
--docker-server=mirror.air-gapped.local:5000 \
--docker-username=init \
--docker-password=qaws12 \
mirror-registry-ps
